1075/1095 Spring Steel (30)

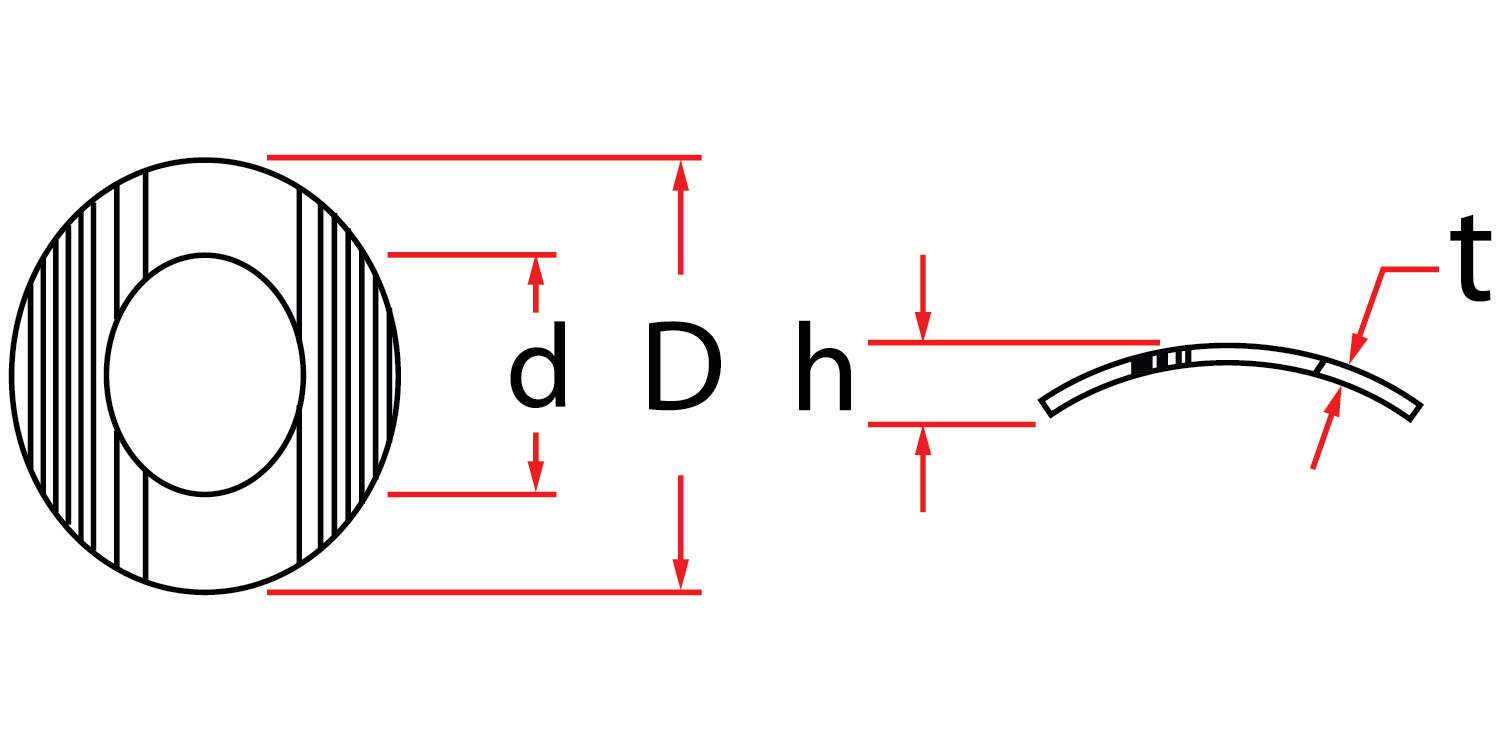

Part Number Bolt Diameter d D Tolerance D t Tolerance t h Tolerance h Price
1W-03020-001-CC #5 0.13 0.302 + / - .005 0.015 + / - 10% 0.058 + / - .005 Request a Quote
1W-03020-002-CC #10 0.2 0.302 + / - .005 0.01 + / - 10% 0.061 + / - .005 Request a Quote
1W-03750-003-CC #10 0.21 0.375 + / - .005 0.015 + / - 10% 0.045 + / - .005 Request a Quote
1W-04380-004-CC #10 0.203 0.438 + / - .005 0.01 + / - 10% 0.07 + / - .005 Request a Quote
1W-04400-010-CC 5/16 Inch 0.317 0.44 + / - .005 0.01 + / - 10% 0.062 + / - .005 Request a Quote
1W-05000-005-CC #10 0.208 0.5 + / - .005 0.028 + / - 10% 0.093 + / - .005 Request a Quote
1W-05310-006-CC 1/4 Inch 0.262 0.531 + / - .005 0.01 + / - 10% 0.117 + / - .005 Request a Quote
1W-05310-007-CC 1/4 Inch 0.265 0.531 + / - .005 0.03 + / - 10% 0.078 + / - .005 Request a Quote
1W-05520-009-CC 1/4 Inch 0.261 0.552 + / - .005 0.012 + / - 10% 0.093 + / - .005 Request a Quote
1W-05600-013-CC 3/8 Inch 0.39 0.56 + / - .005 0.01 + / - 10% 0.09 + / - .005 Request a Quote
1W-05620-008-CC 1/4 Inch 0.265 0.562 + / - .005 0.01 + / - 10% 0.09 + / - .005 Request a Quote
1W-05620-011-CC 5/16 Inch 0.353 0.562 + / - .005 0.01 + / - 10% 0.125 + / - .005 Request a Quote
1W-05630-014-CC 3/8 Inch 0.379 0.563 + / - .005 0.01 + / - 10% 0.078 + / - .005 Request a Quote
1W-06200-015-CC 3/8 Inch 0.406 0.62 + / - .005 0.02 + / - 10% 0.145 + / - .005 Request a Quote
1W-06250-012-CC 5/16 Inch 0.325 0.625 + / - .005 0.014 + / - 10% 0.08 + / - .005 Request a Quote
1W-06780-017-CC 3/8 Inch 0.379 0.678 + / - .005 0.01 + / - 10% 0.135 + / - .005 Request a Quote
1W-06800-016-CC 3/8 Inch 0.4 0.68 + / - .005 0.018 + / - 10% 0.12 + / - .005 Request a Quote
1W-06870-018-CC 3/8 Inch 0.406 0.687 + / - .005 0.015 + / - 10% 0.125 + / - .005 Request a Quote
1W-07500-019-CC 3/8 Inch 0.406 0.75 + / - .005 0.015 + / - 10% 0.125 + / - .005 Request a Quote
1W-07500-022-CC 7/16 Inch 0.438 0.75 + / - .005 0.016 + / - 10% 0.094 + / - .005 Request a Quote
1W-07800-020-CC 3/8 Inch 0.38 0.78 + / - .005 0.013 + / - 10% 0.135 + / - .005 Request a Quote
1W-08750-025-CC 1/2 Inch 0.515 0.875 + / - .005 0.012 + / - 10% 0.107 + / - .005 Request a Quote
1W-08750-028-CC 5/8 Inch 0.64 0.875 + / - .005 0.01 + / - 10% 0.12 + / - .005 Request a Quote
1W-08800-023-CC 7/16 Inch 0.46 0.88 + / - .005 0.015 + / - 10% 0.12 + / - .005 Request a Quote
1W-08800-024-CC 7/16 Inch 0.46 0.88 + / - .005 0.015 + / - 10% 0.12 + / - .005 Request a Quote
1W-09000-026-CC 9/16 Inch 0.59 0.9 + / - .005 0.03 + / - 10% 0.12 + / - .005 Request a Quote
1W-09380-021-CC 3/8 Inch 0.381 0.938 + / - .005 0.02 + / - 10% 0.1 + / - .005 Request a Quote
1W-09975-029-CC 5/8 Inch 0.641 0.998 + / - .005 0.012 + / - 10% 0.095 + / - .005 Request a Quote
1W-10000-027-CC 9/16 Inch 0.593 1 + / - .005 0.015 + / - 10% 0.12 + / - .005 Request a Quote
1W-11900-030-CC 3/4 Inch 0.78 1.19 + / - .005 0.02 + / - 10% 0.19 + / - .005 Request a Quote
